TSW - DER RÄNDELPROFI

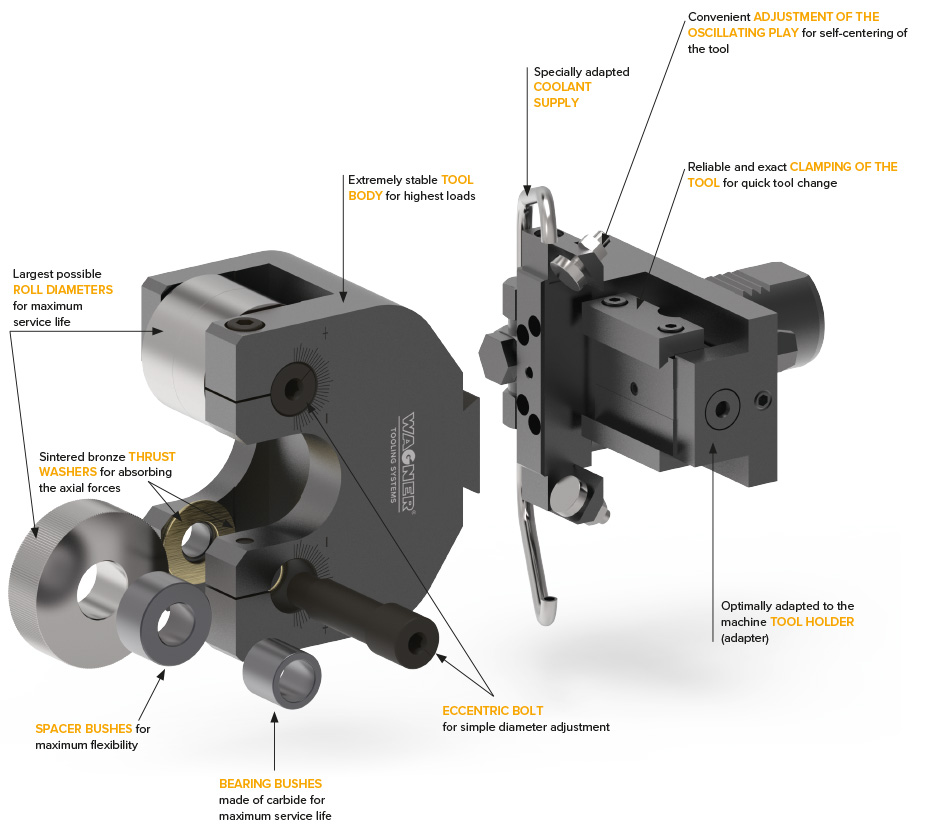

The TSW tangential tool is the „knurling professional“ among the Wagner tools and is characterized by excellent cost-efficiency.
The TSW knurling tool can be used to roll profiles, parallel grooves, knurls and beads in a time-saving manner. During machining – preferably on single and multispindle lathes – the workpiece must rotate; the tool itself is stationary.
ADVANTAGES
- very short processing times
- working range of diameter 3 to 40 mm
- roll width up to 43 mm
- Cost-effective
- Simple operation
- Quick roll change
- Simple diameter adjustment
- Rigid tool body
- Large roll diameters for long tool live
> MORE INFORMATIONS ABOUT KNURLING TECHNOLOGY
| TYPE | Working range Ø mm |
Working range Ø inch |
Roll width mm |
Roll width inch |
Dimensions approx. Height mm |
Dimensions approx. Width mm |
Dimensions approx. Depth mm |
Weight of tool with rolls kg |
Weight of adapter kg |
|---|---|---|---|---|---|---|---|---|---|
| TSW10 | 3–18 | 0.118–0.709 | 20 | 0.787 | 80 | 103 | 53 | 1.9 | 2–3 |
| TSW18 | 14–36 | 0.551–1.417 | 40 | 1.575 | 114 | 140 | 75 | 5.9 | 3–5 |
| TSW24 | 18–40 | 0.709–1.575 | 43.9 | 1.728 | 115 | 147 | 79 | 6.1 | 3–5 |
| TSW24-SR | 18–40 | 0.709–1.575 | 20 | 0.787 | 115 | 147 | 53 | 4.1 | 3–5 |
