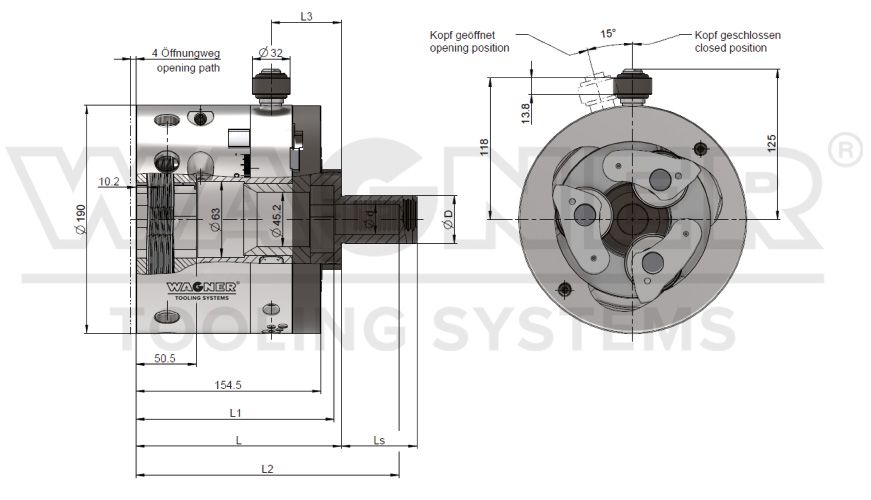

Axial rolling systems with roll holders, stationary
| Weight | 28 kg |
|---|---|
| Working range Ø (mm/inch) | 8–75 / 0.315–1.654 |
| Pitch max. (mm/inch) | 4.5 / 6 t.p.i. |
| Shank-Ø D (mm/inch) |
d (mm) | L (mm) | LS (mm) | L1 (mm) | L2 (mm) | L3 (mm) |
|---|---|---|---|---|---|---|
| 32 | 15 | 155.5 | 75 | 146.5 | ∞ | 42.5 |
| 40 | 30 | 155.5 | 120 | 146.5 | ∞ | 42.5 |
| 50 | 39.5 | 155.5 | 120 | 146.5 | 259.5 | 42.5 |
| 50 | 33 | 175.5 | 120 | 146.5 | ∞ | 62.5 |
| 50 | 39.5 | 155.5 | 120 | 146.5 | ∞ | 42.5 |
| 60 | 48.4 | 155.5 | 120 | ∞ | - | 42.5 |
| VDI 30 | 16.2 | 171.5 | 55 | 165.5 | 219.5 | 58.5 |
| VDI 40 | 25 | 171.5 | 63 | 165.5 | 219.5 | 58.5 |
| VDI 50 | 32 | 171.5 | 78 | 165.5 | 232.5 | 58.5 |
