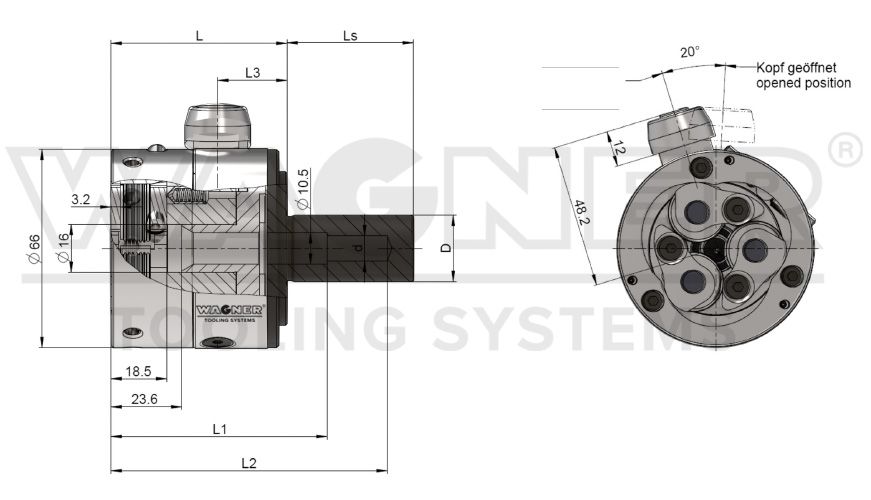

Axial rolling systems with roll holders, stationary
| Weight | 1.2 kg |
|---|---|
| Working range Ø (mm/inch) | 2.5–10 / 0.1–0.4 |
| Pitch max. (mm/inch) | 1.5 / 16 t.p.i. |
| Shank-Ø D (mm/inch) |
d (mm) | L (mm) | LS (mm) | L1 (mm) | L2 (mm) | L3 (mm) |
|---|---|---|---|---|---|---|
| 10 | 5 | 58.5 | 42 | 51 | ∞ | 23 |
| 12 | 5 | 58.5 | 42 | 51 | ∞ | 23 |
| 19.05 / 3/4" | - | 58.5 | 42 | ∞ | - | 23 |
| 20 | - | 58.5 | 42 | ∞ | - | 23 |
| 22 | - | 58.5 | 42 | ∞ | - | 23 |
| 22 | - | 58.5 | 100 | ∞ | - | 23 |
| 25 | - | 58.5 | 48 | ∞ | - | 23 |
| 25.4 / 1" | - | 58.5 | 48 | ∞ | - | 23 |
| 28.5 | - | 58.5 | 51 | ∞ | - | 23 |
| 40 | - | 56.3 | 60 | 98 | - | 20 |
| VDI 16 | 8.5 | 63.3 | 32 | 87 | - | 27 |
| VDI 20 | 8.5 | 68.3 | 40 | 72 | 101 | 33 |
| VDI 25 | - | 74.3 | 48 | 114 | - | 38 |
| VDI 30 | - | 74.3 | 55 | 120 | - | 38 |
